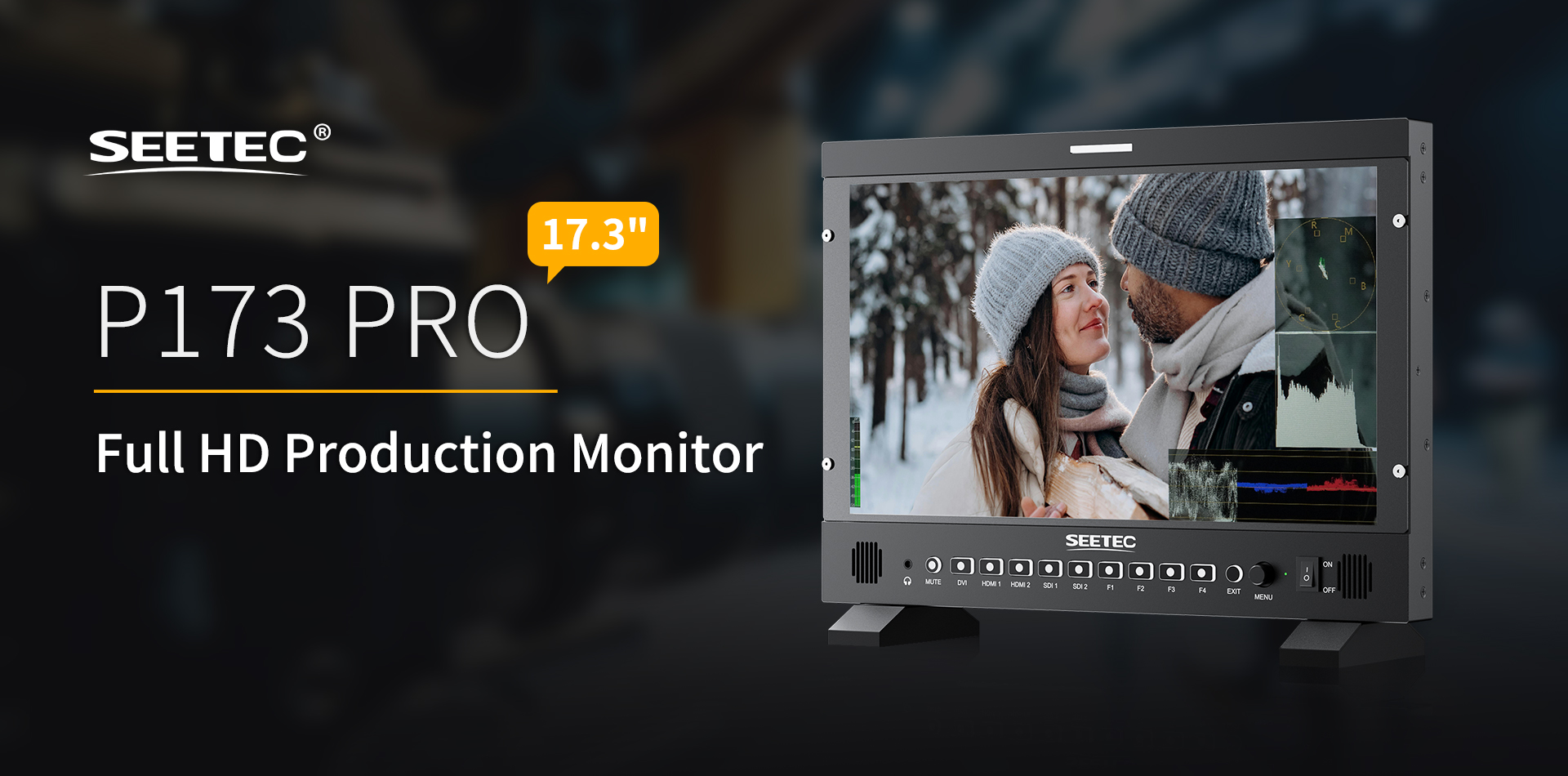

High Quality Professional Monitoring

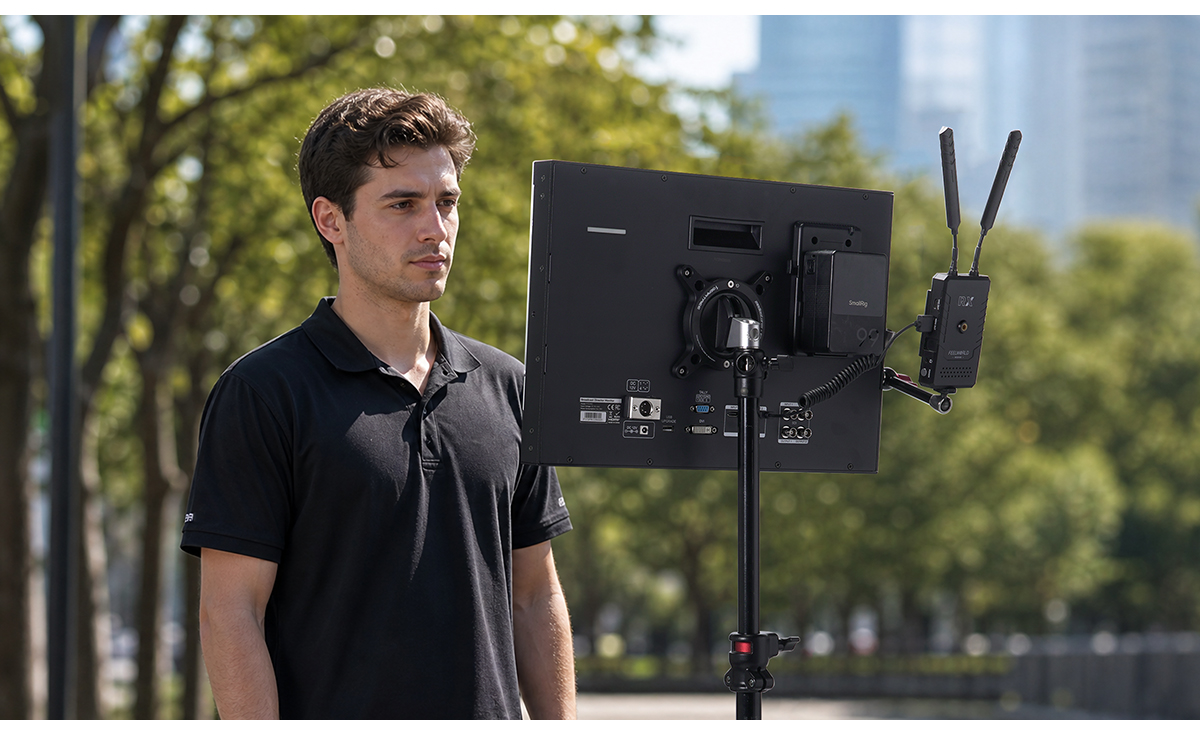

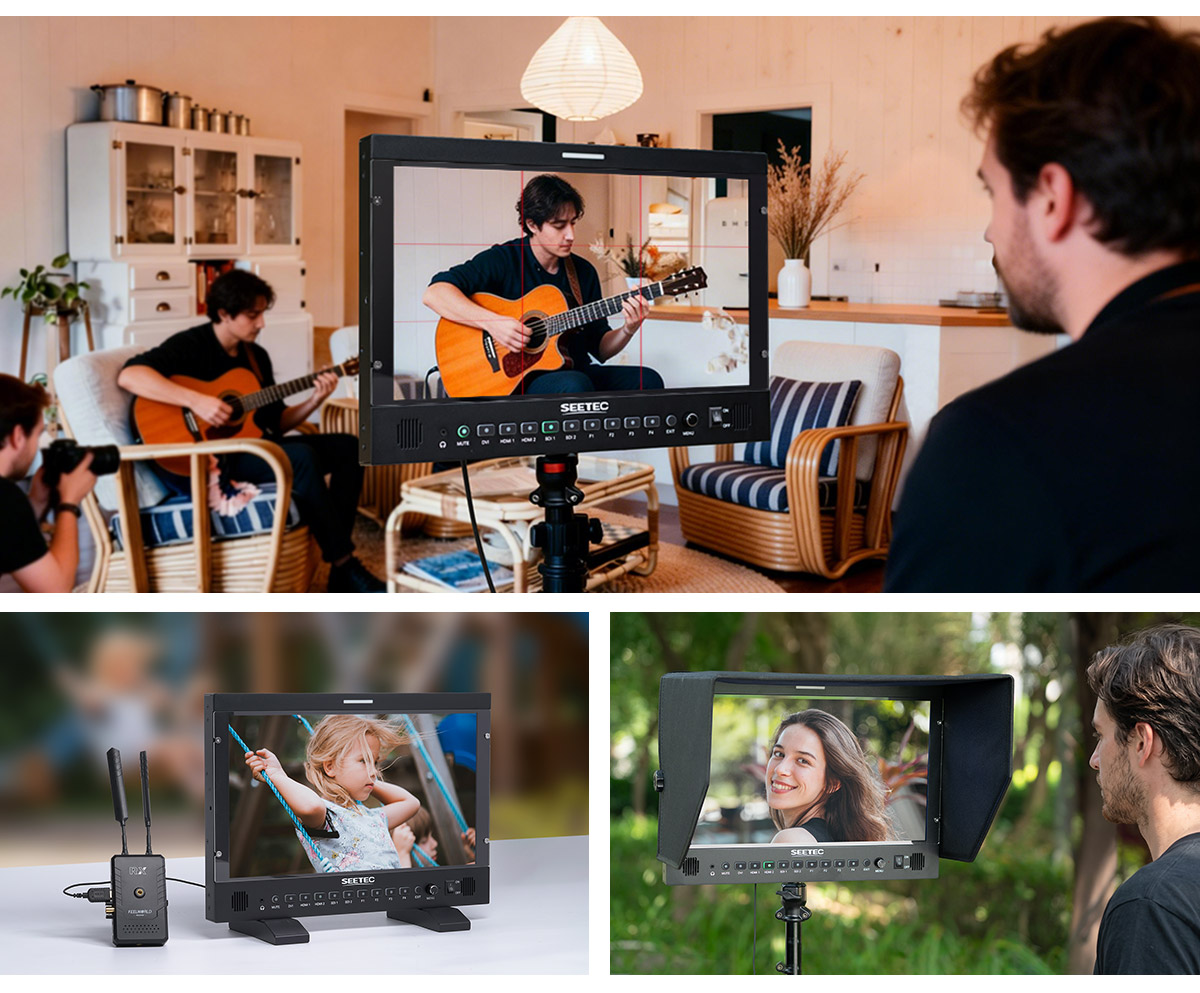

The P173 PRO is a versatile high quality monitor suitable for a full spectrum of production scenarios, ranging from broadcasting stations and live on-site production to outdoor on-location shooting for film crews.
It fully supports video formats including SD/HD/3G-SDI and 4K HDMI @ 60Hz. Equipped with XLR connector, a DC IN power input port and a V-mount battery plate, the monitor can operate seamlessly via either DC power supply or V-mount batteries.
A comprehensive suite of camera assist functions empowers cinematographers to frame shots accurately on set and effectively reduce post-production workload. The standard accessory desktop stand and sun hood, and the monitor also features built-in VESA mounting holes to enable wall-mounted installation for flexible layout configurations.

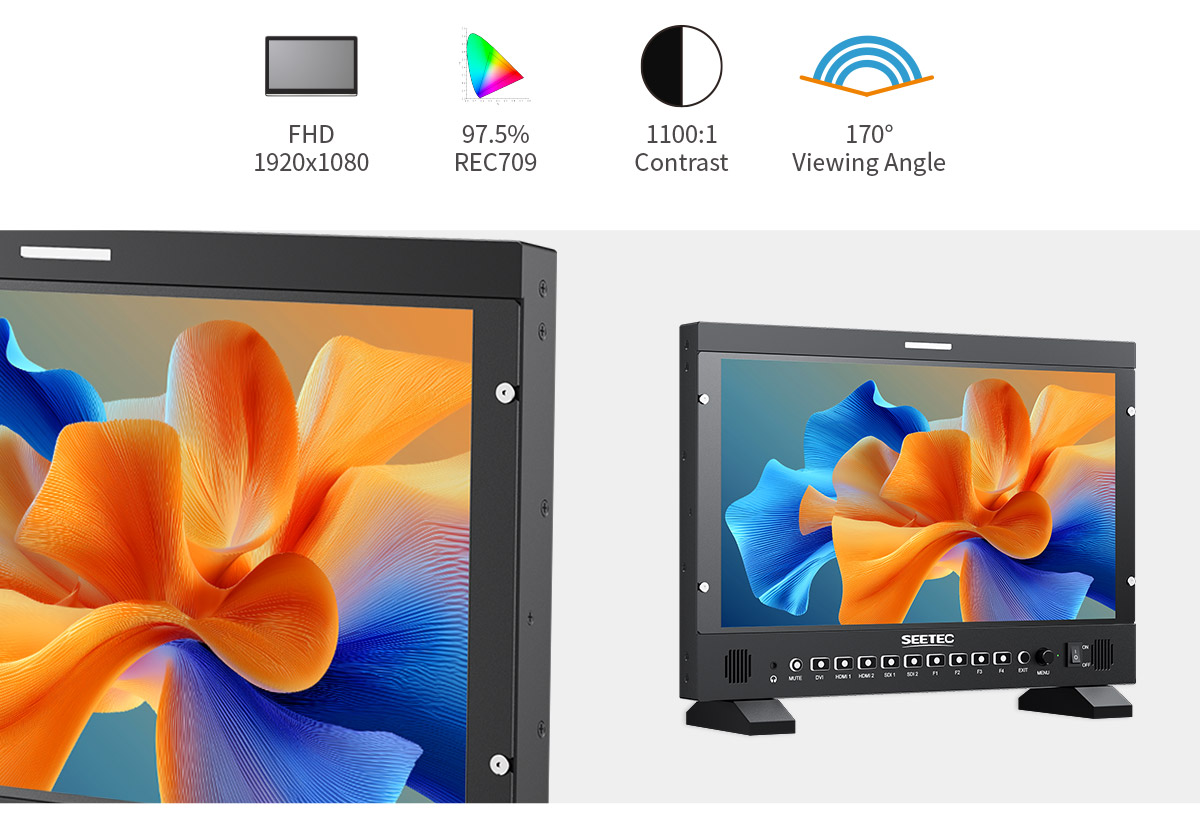

17.3-inch Full HD Screen
Clearly checking and capture every nuance
Equipped with 17.3-inch FHD 1920×1080 full HD IPS for exquisite image details. Covering 97.5% Rec.709 broadcast color gamut, it delivers consistent, true-to-life color grading for live streaming and video production. With 1100:1 high contrast ratio, the screen presents rich light & shadow layers, retaining clear details in both dark and bright areas. The 170°ultra-wide viewing angle ensures uniform color performance from all sides, ideal for multi-person studio monitoring and on-location shooting.

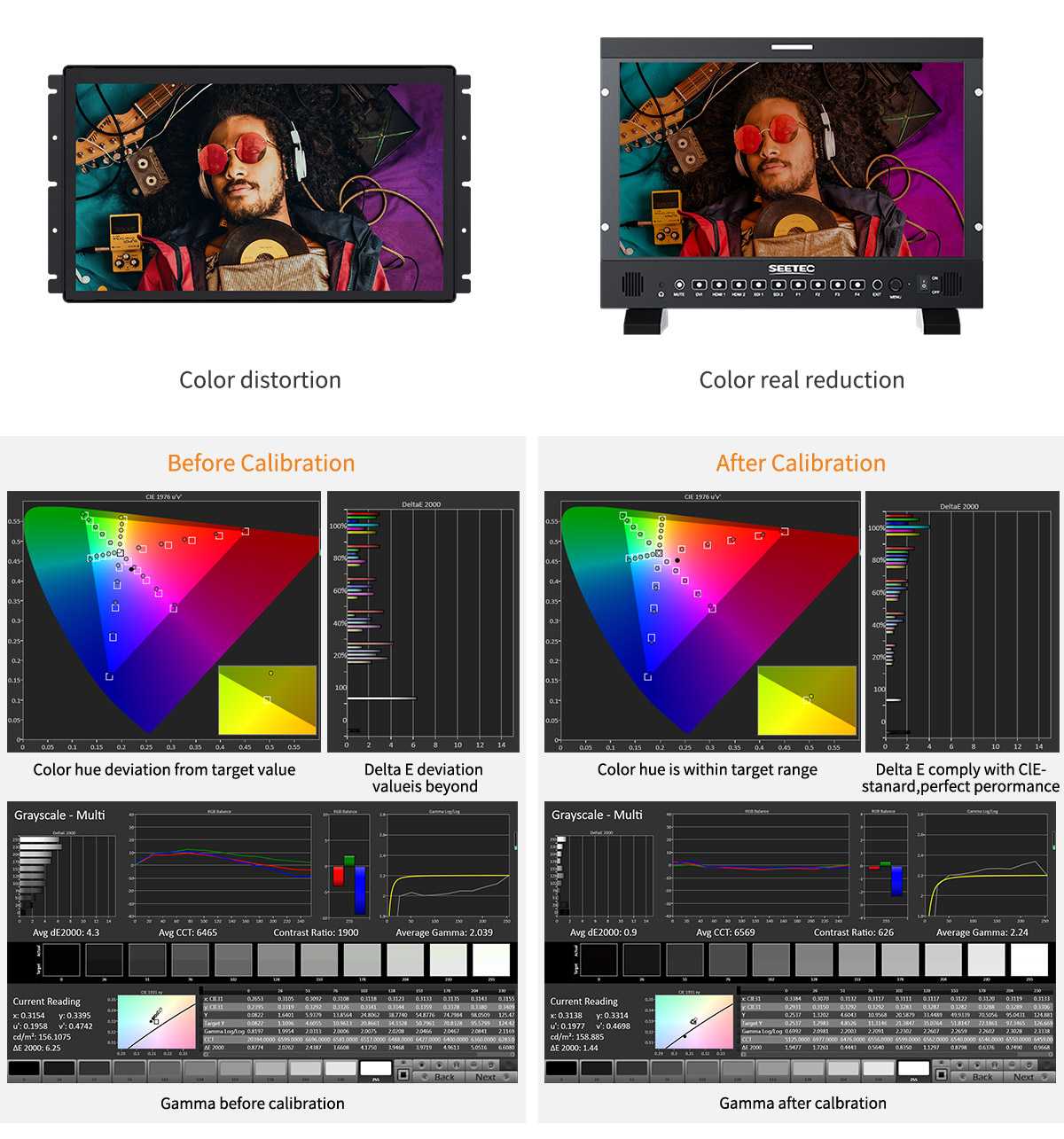

CalMAN Software Calibration, True Color Presentation
Each monitor is calibrated by CalMAN professional color calibration software before ex-factory to ensure color accuracy and good reproduction

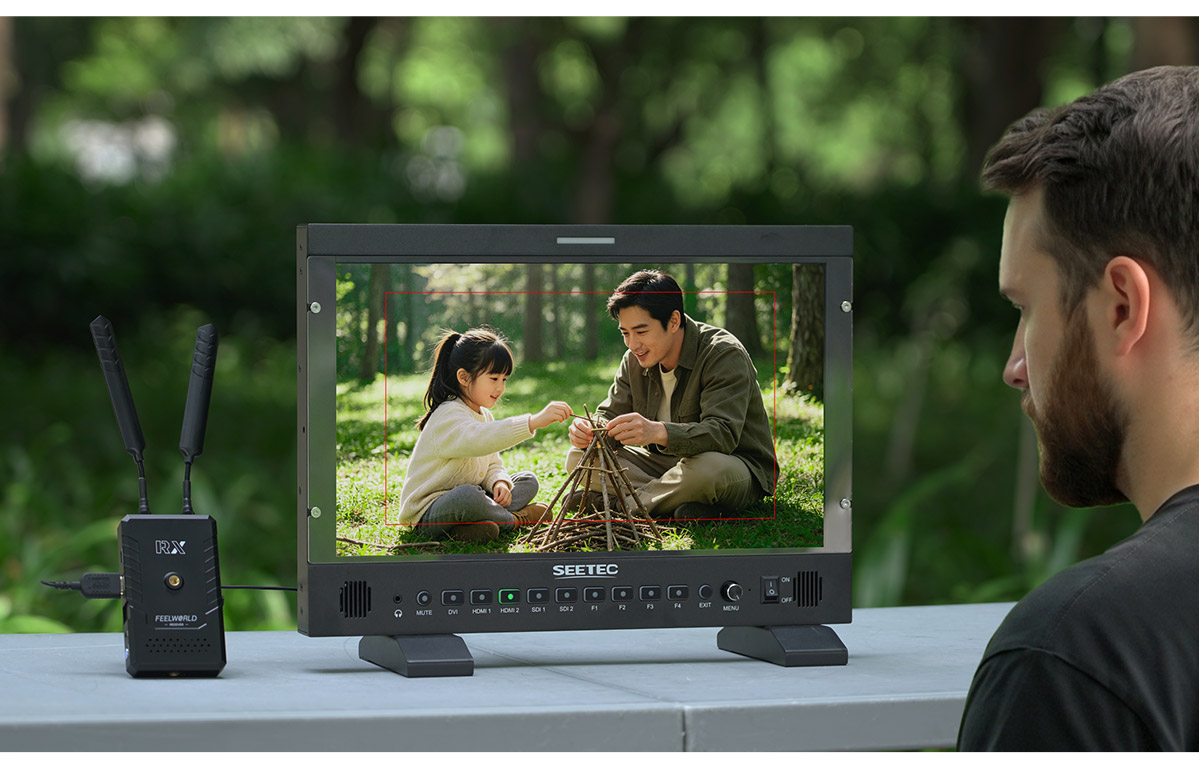

1000nits, Daylight Viewable
High brightness 1000nits is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

4K 60Hz,Provide Smoother Experience
HDMI upgraded for 4K at 60HZ, capable of transmitting double the video data of 4K at 30HZ. Provide smoother visuals and maintains high-frame-rate dynamic images from cameras.

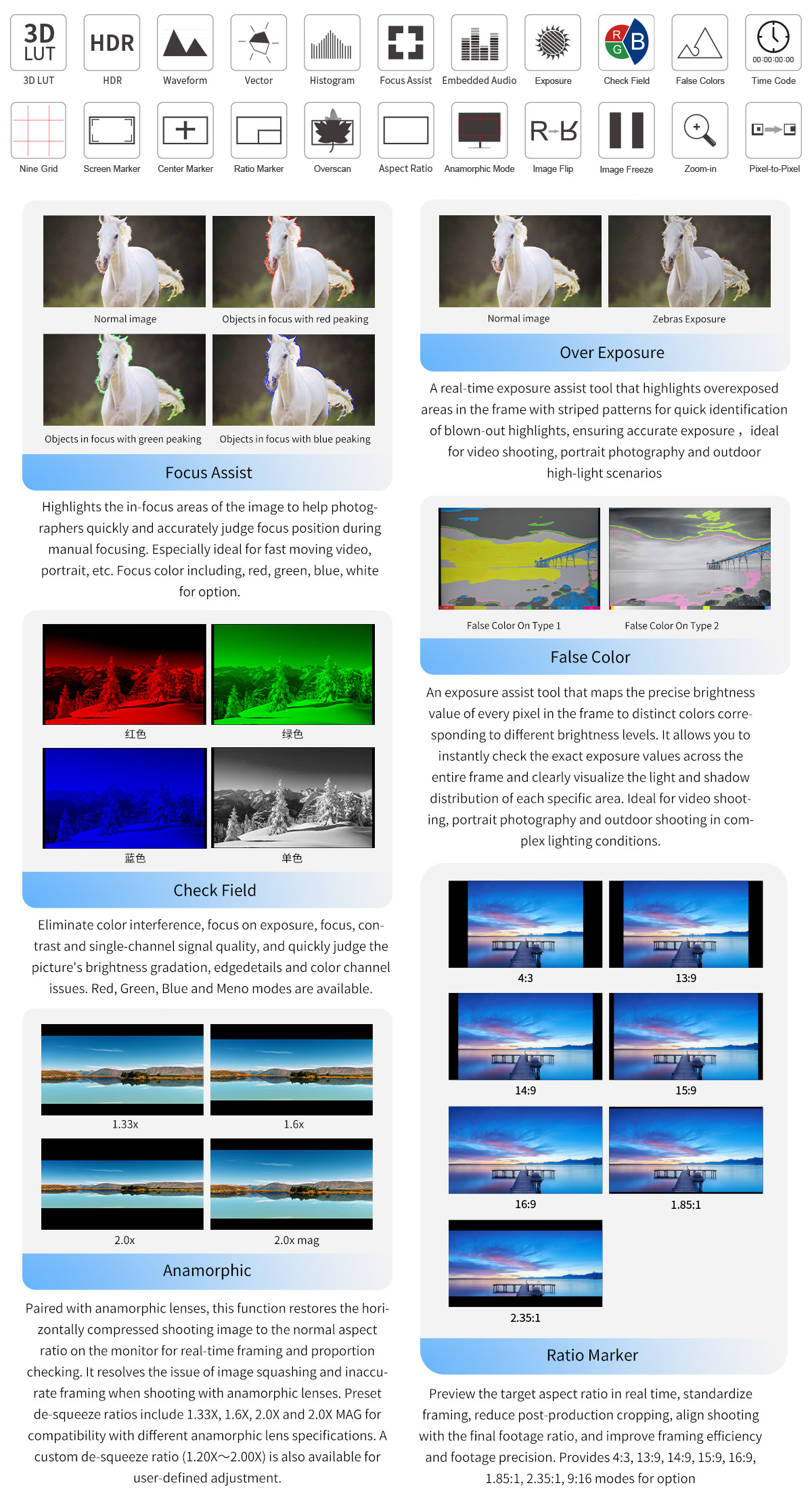

Full Range of Auxiliary Functions

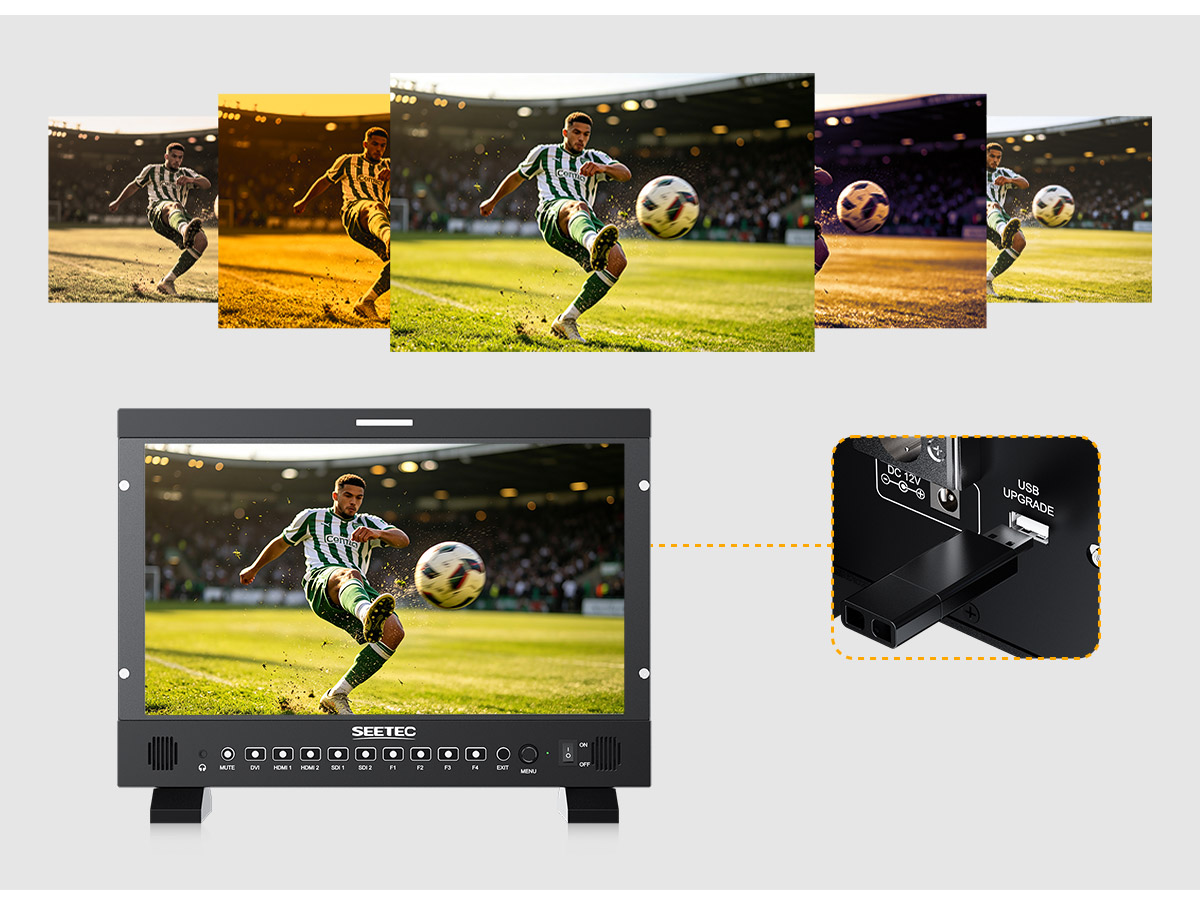

Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Supports uploading 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in 4 types(S-Log2,s-Log3, C-Log, V-Log) or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the USB flash drive, and insert to the USB interface of P173 PRO to import (up to 32 custom files can be imported).

Dynamic HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clarity，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

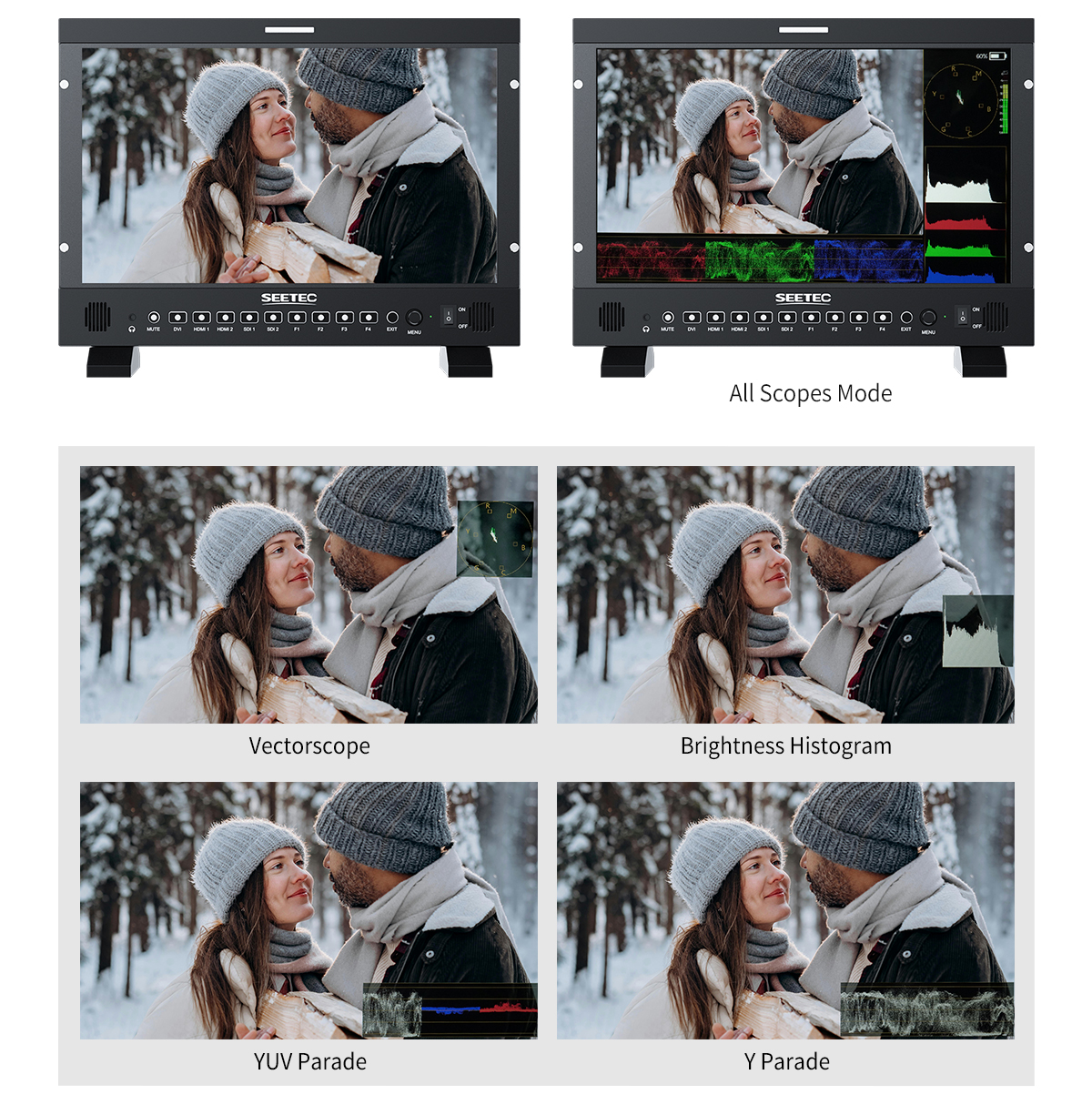

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position. P173 PRO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

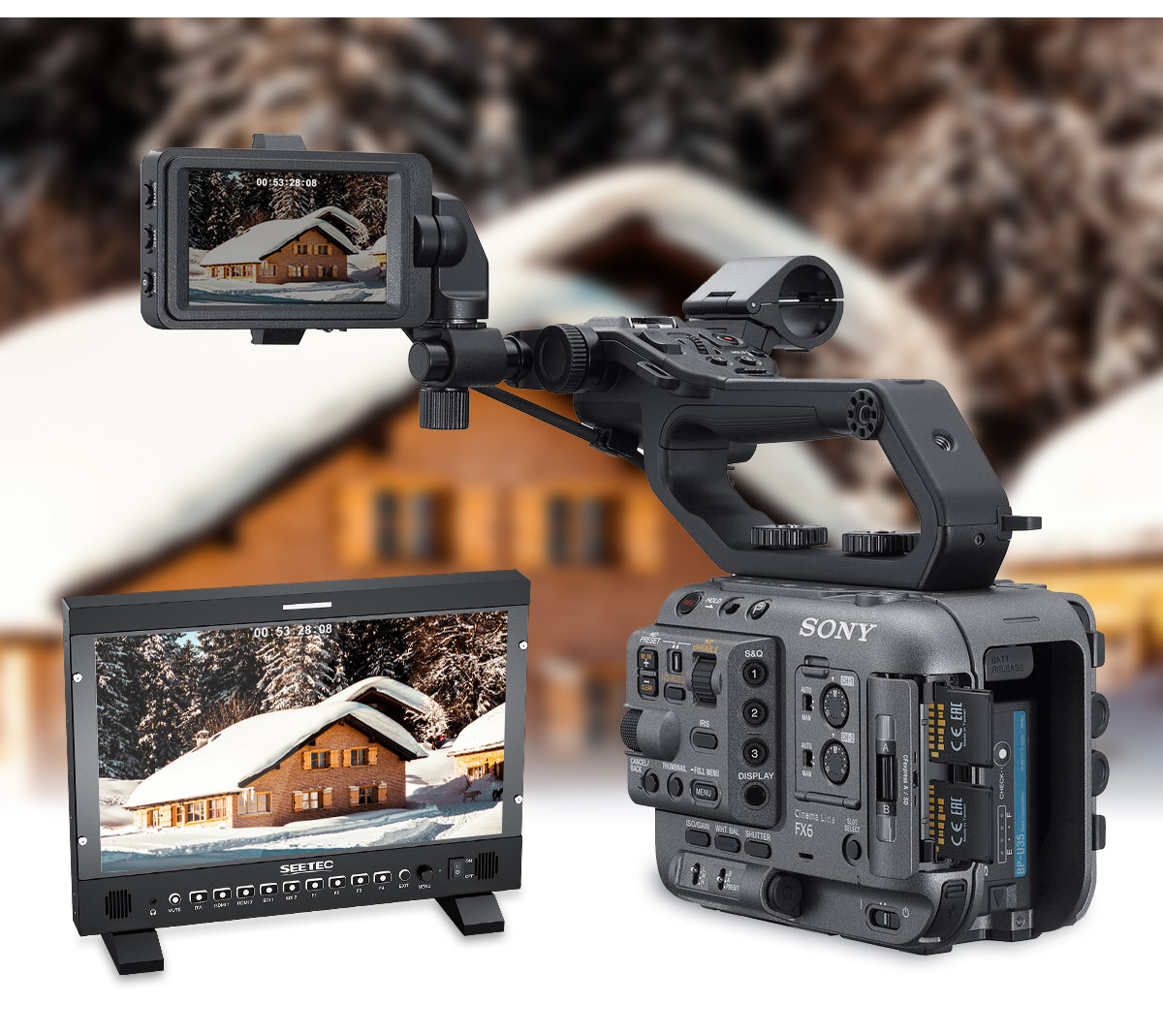

SDI Time Code
P173 PRO supports LTC、VITC time code display under SDI signal, it is synchronization with the camera. It is particularly convenient to identify specific frame rates in film and video production.

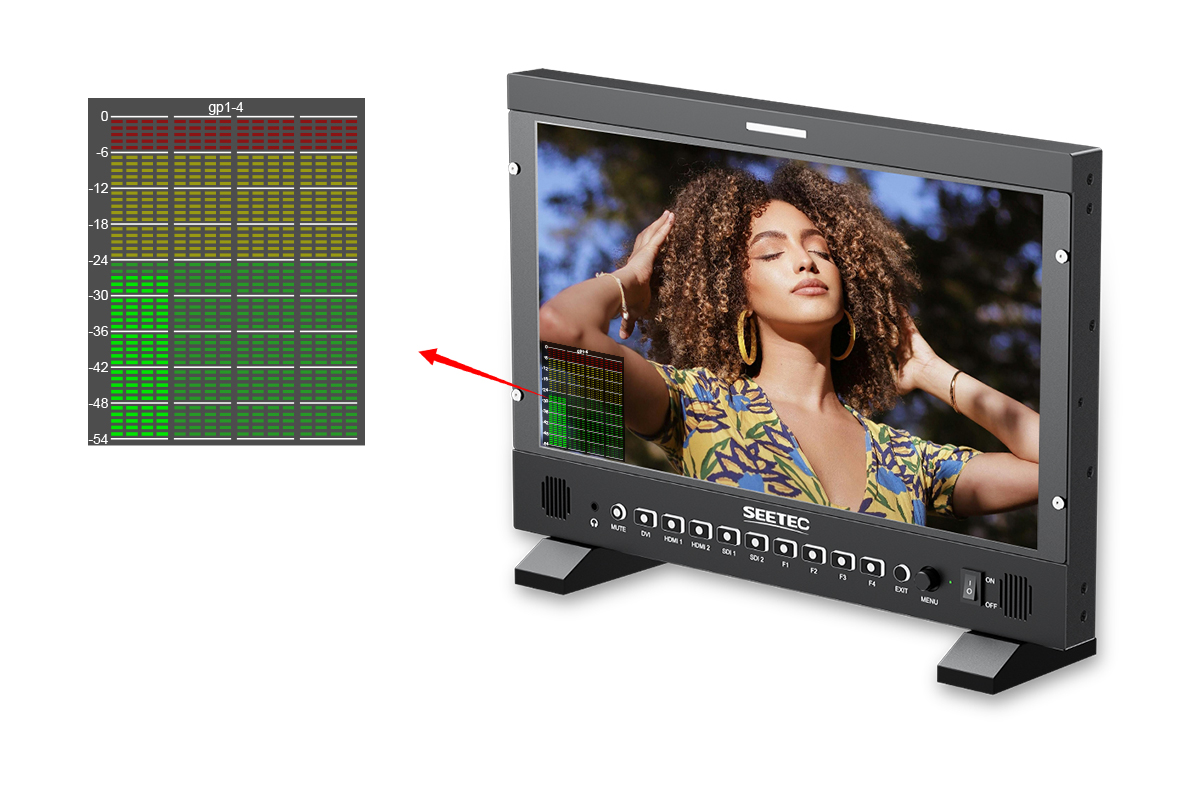

Up to 16-channel Audio Meter Level
P173 PRO can de-embedded audio from SDI and HDMI. Under HDMI, you can select 2 channels, 4 channels, 8 channels audio meters display; under SDI, you can select 2 channels, 4 channels, 8 channels, 16 channels audio meters display . You also can move it horizontal or vertical position , and don' worry cover the image.

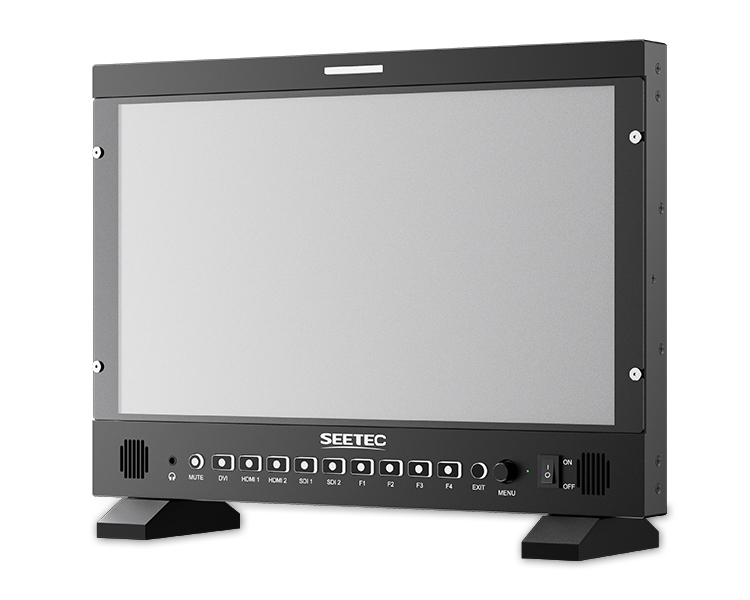

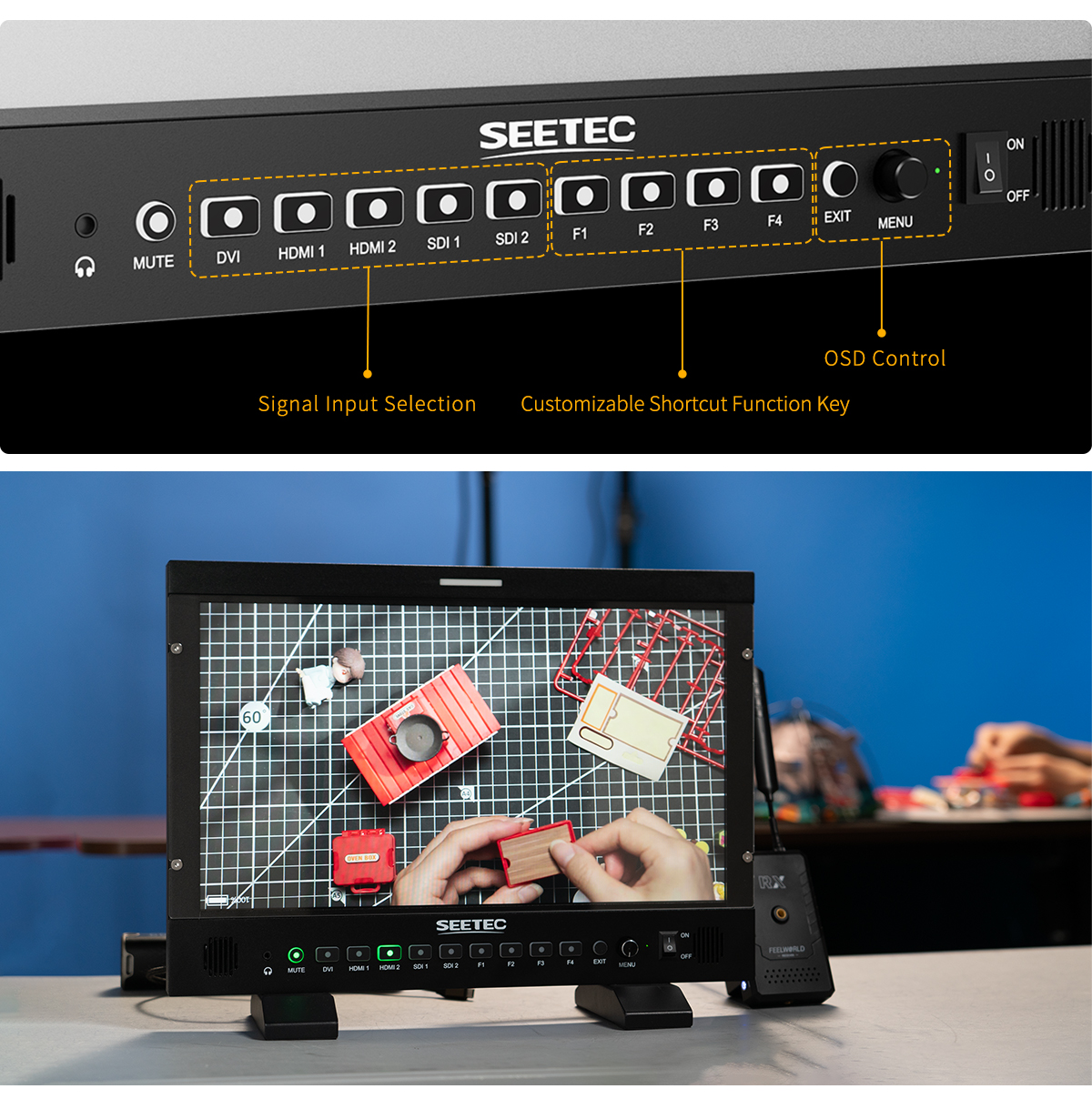

Intuitive Buttons Control, One-key Access
When you are busy at the shooting scene，you need to be able to easily control the equipment.P173 PRO comes with multiple intuitive buttons, you able to one-key mute or easy to switch the signal input source,and the button with green LED backlight,you can fast to know the signal being played even if the dim environment. The 4 customizable shortcut keys, you can custom shortcut function according to your needs, such as all waves,focus assist and so on, improve the shooting efficient.

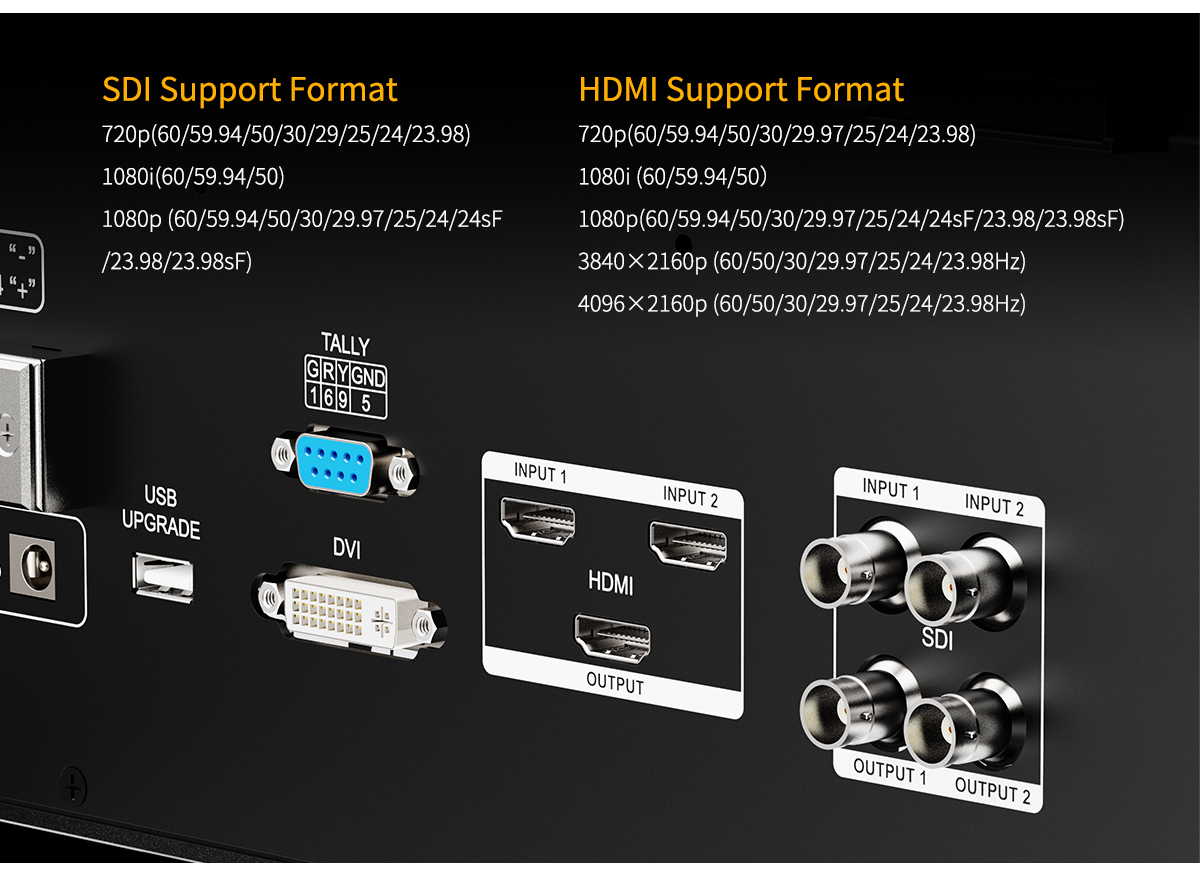

Compatible with Camcorder and DSLR
Equipped with 3G-SDI, HDMI2.0 DVI signal ports, compatible with professional camcorder and the latest DSLR cameras on the market.

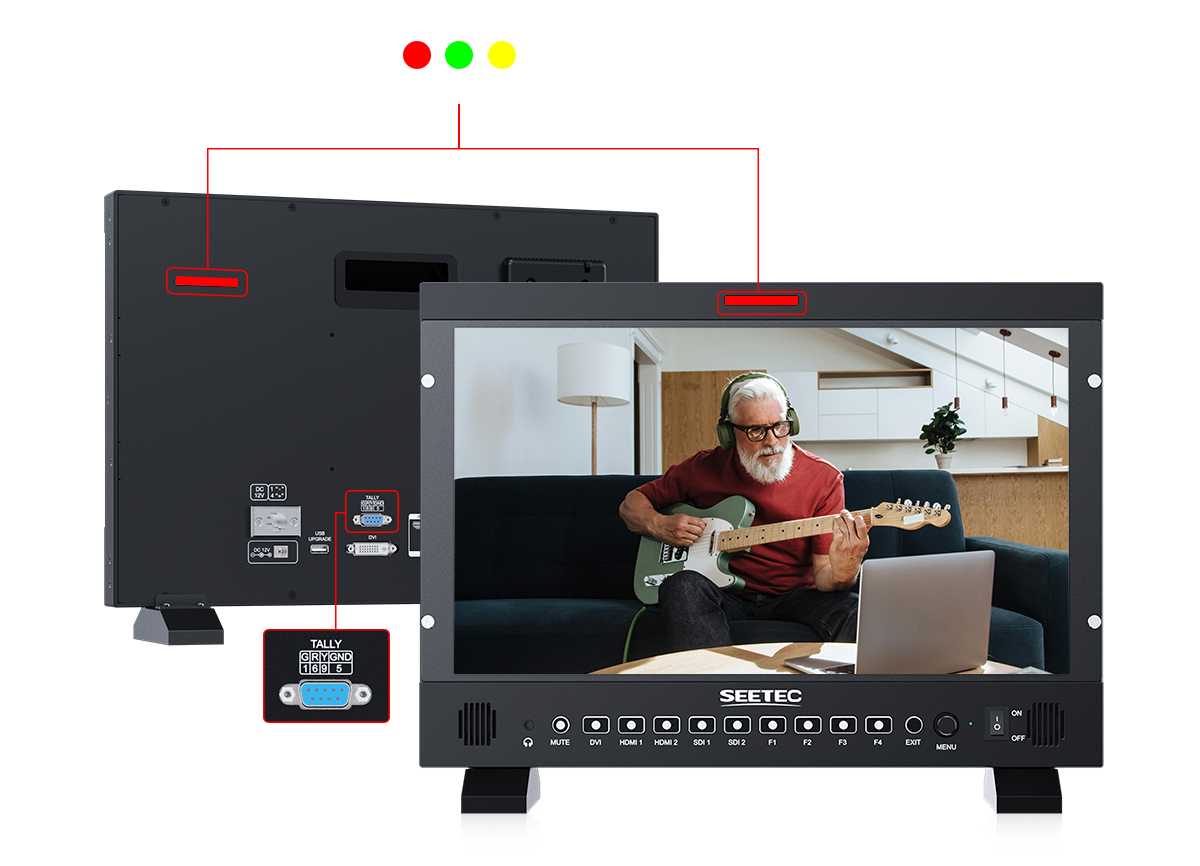

3-color TALLY Light, Enhance Team Cooperation
The front and rear panel of P173 PRO including tally light, it can display in red, green or yellow Tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.

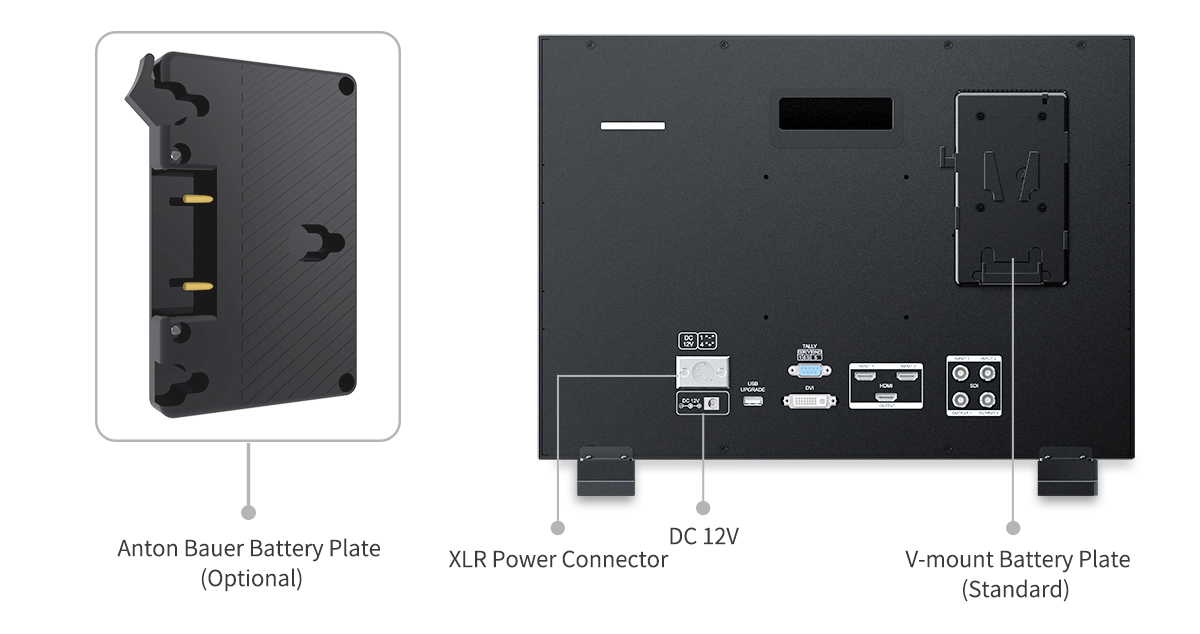

Multiple Power Supply Modes

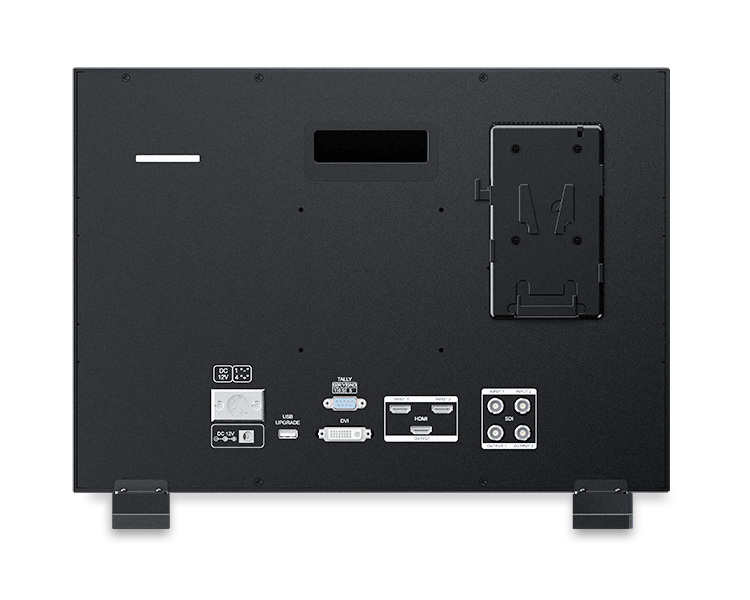

Via V-mount battery plate (standard) or Anton Bauer battery plate (optional),support to install V-mount battery or Anton Bauer Battery; via XLR or DC IN interface,support DC10-24V XLR power adapter or 5.5*2.1mm power adapter.

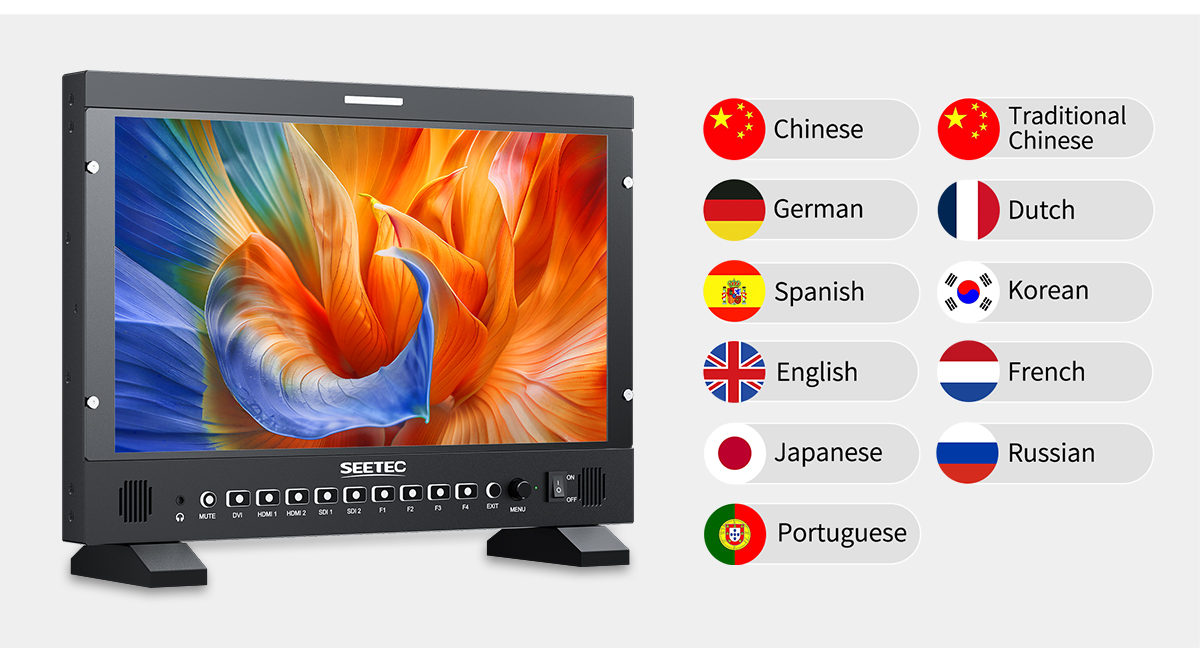

11 Languages Supporting
Built-in up to 11 languages, that means P173 PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

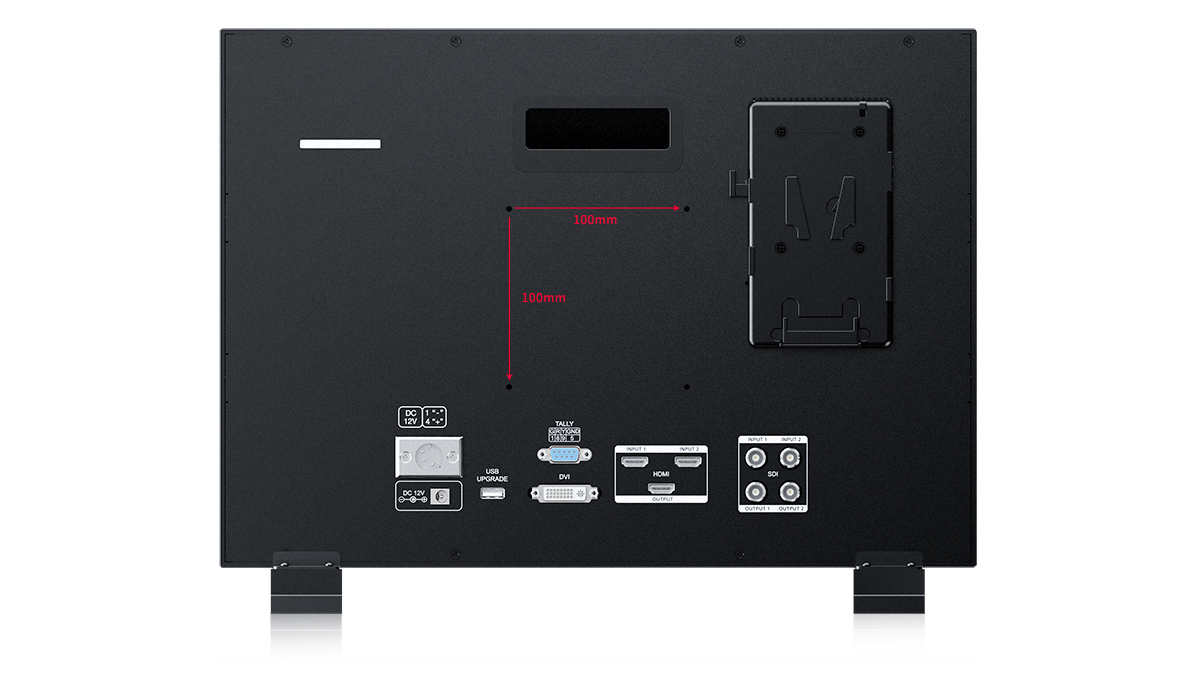

VESA Bracket Mount Point, More Monitoring Method

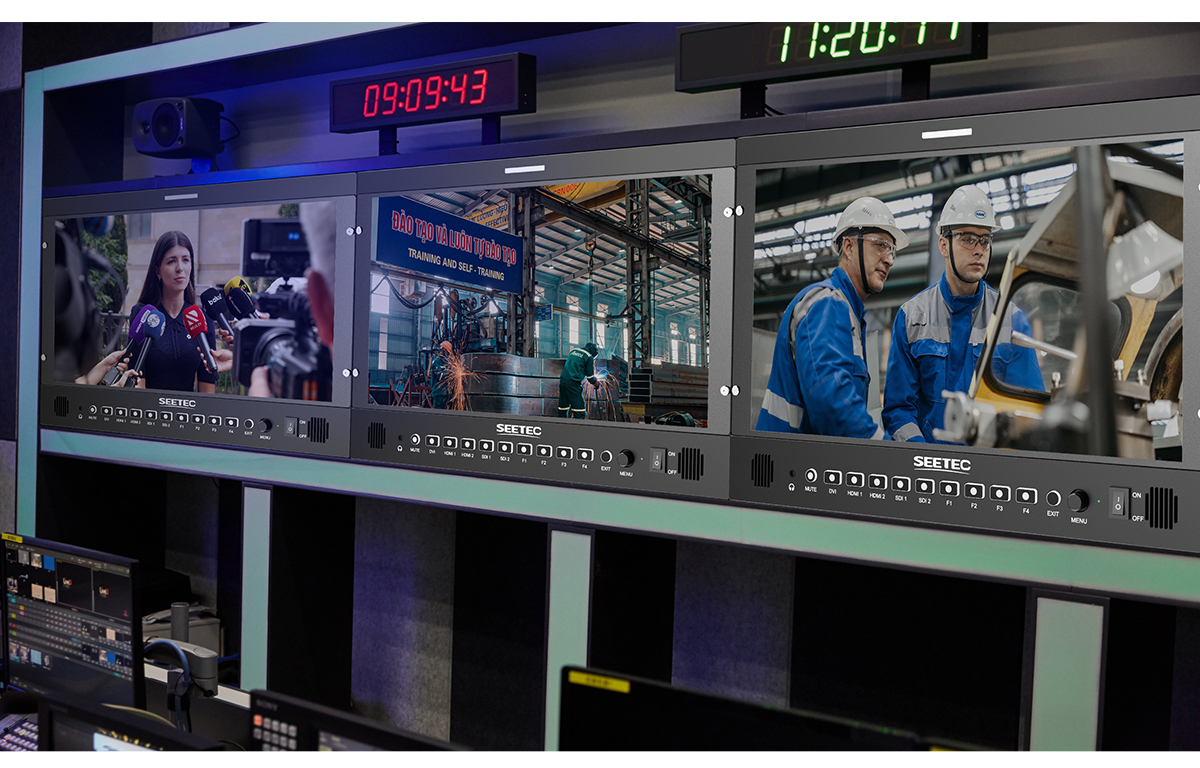

The rear of monitor with 100x100mm VESA mount points, you can mount it in rack or hang it on the wall. Ideal for broadcast studio or live production.

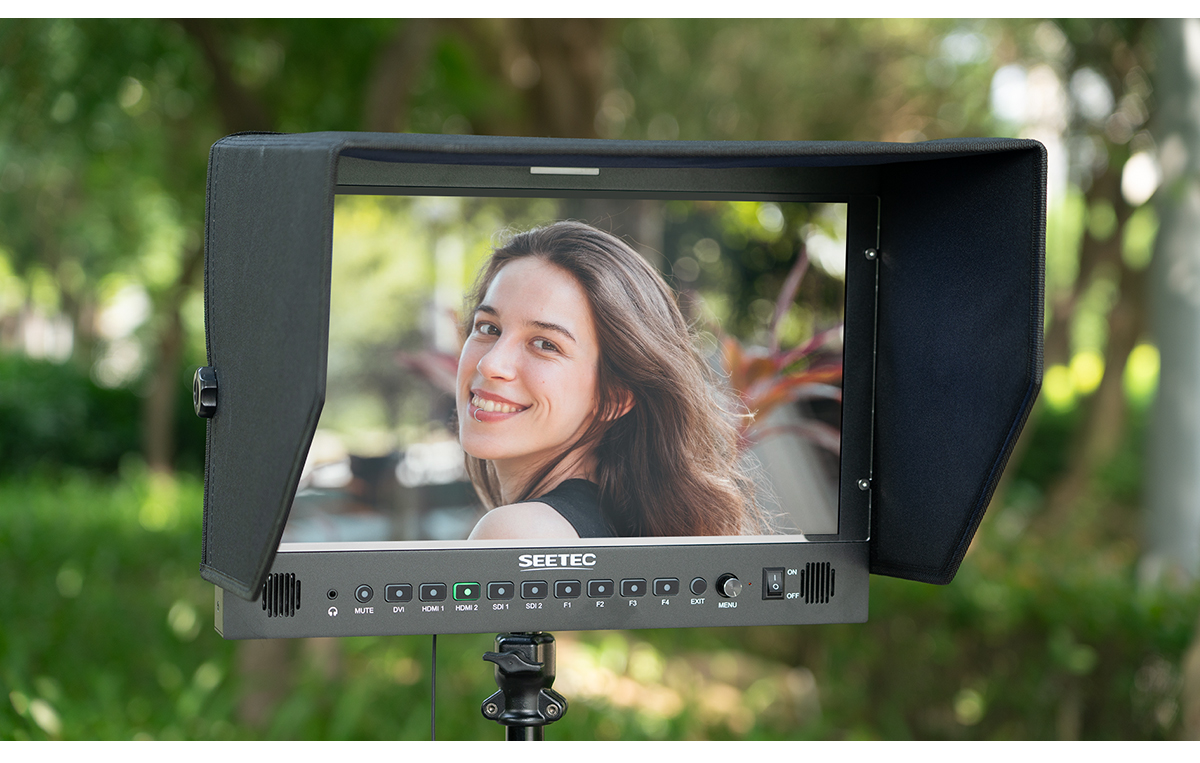

Portable Sunshade
The monitor comes standard with a sunshade, which effectively resists strong light interference and is easy to install and remove.

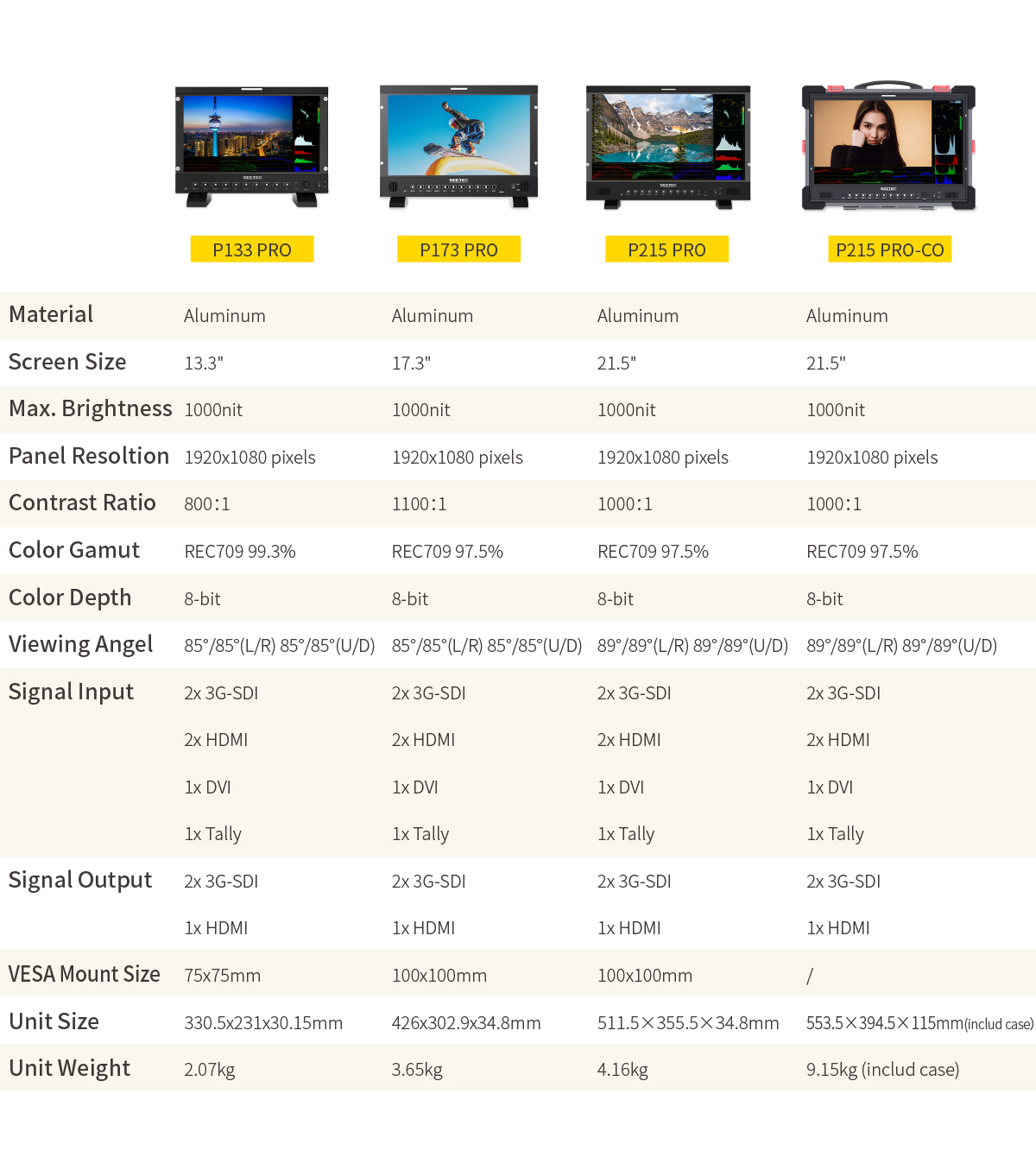

Parameter Comparison
